RapidKeen

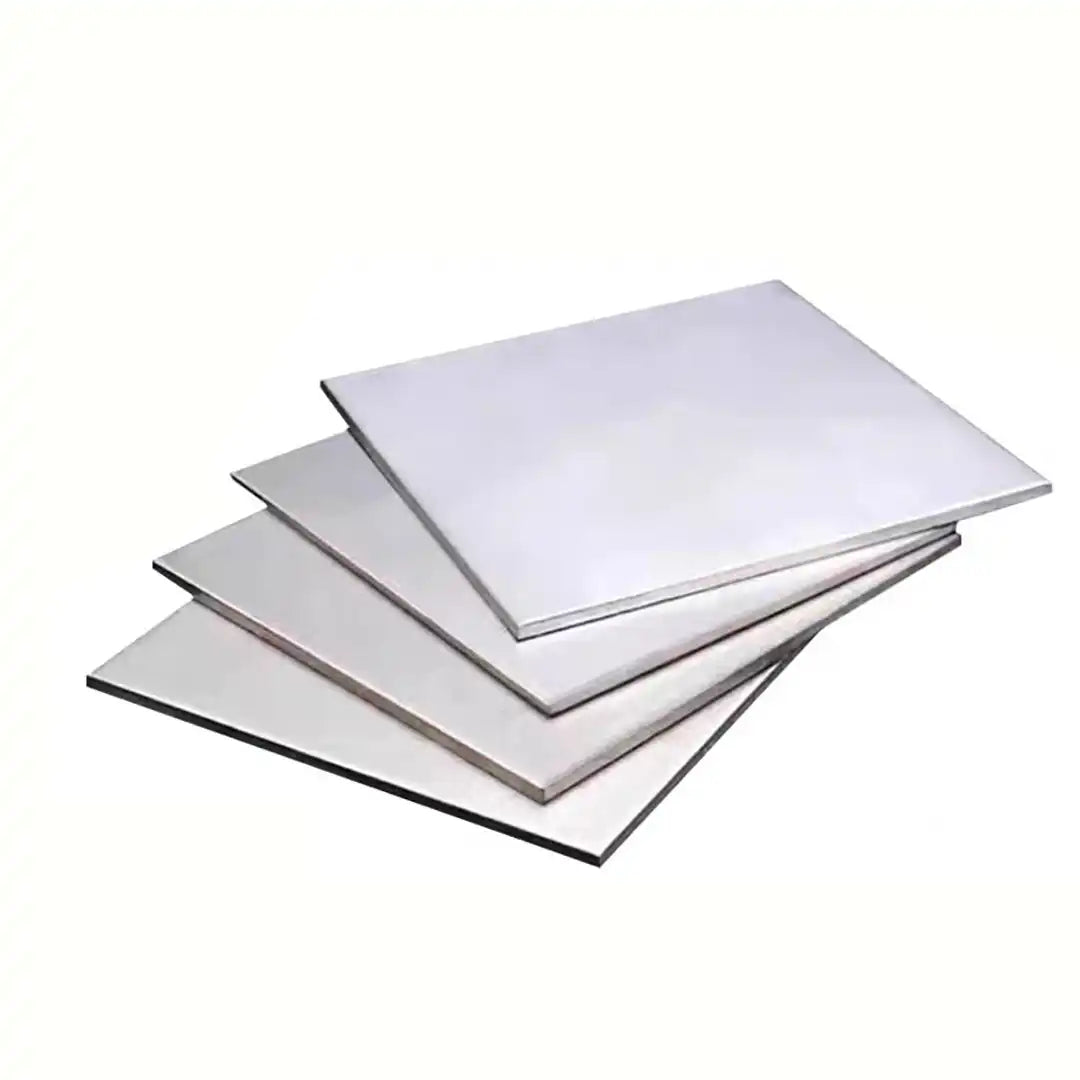

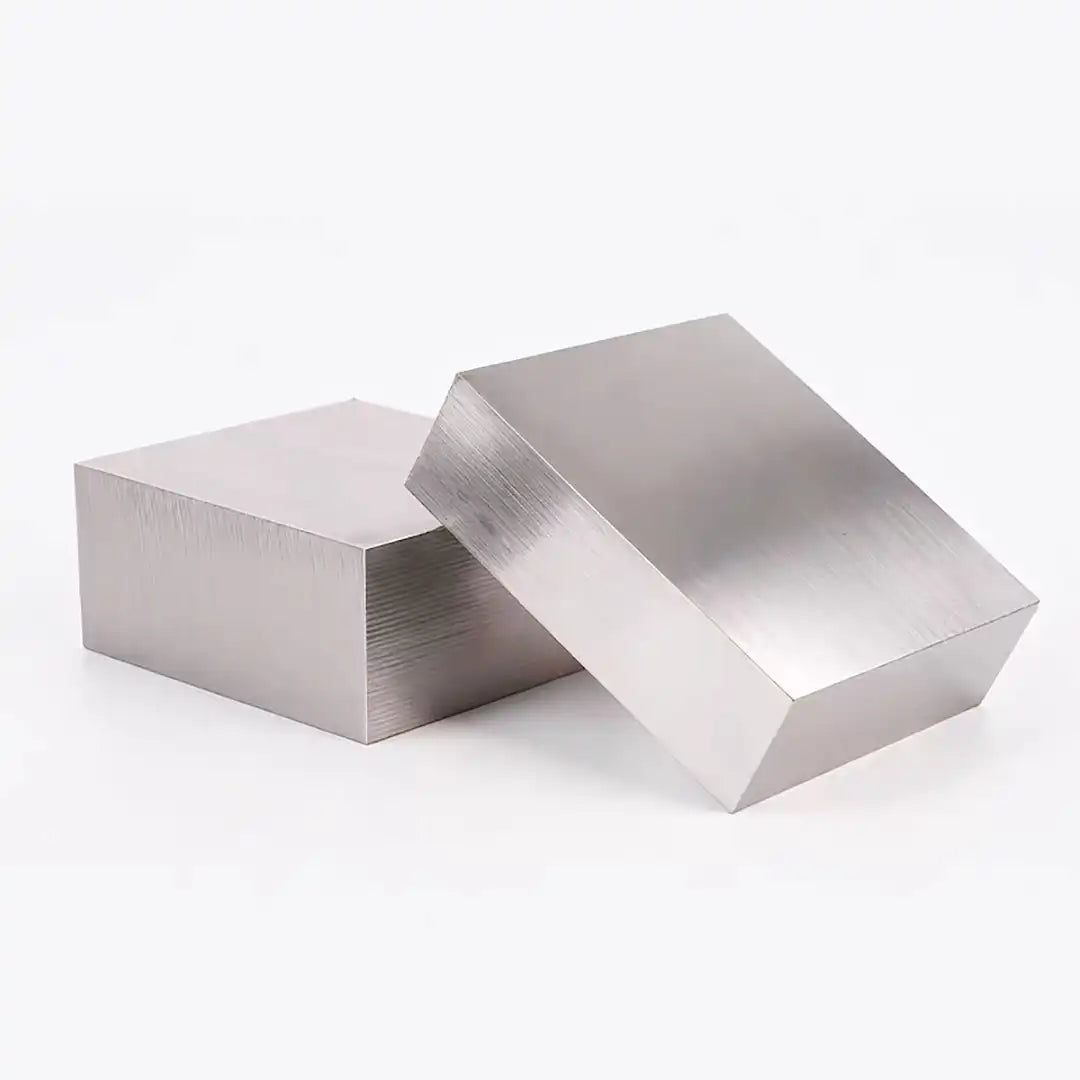

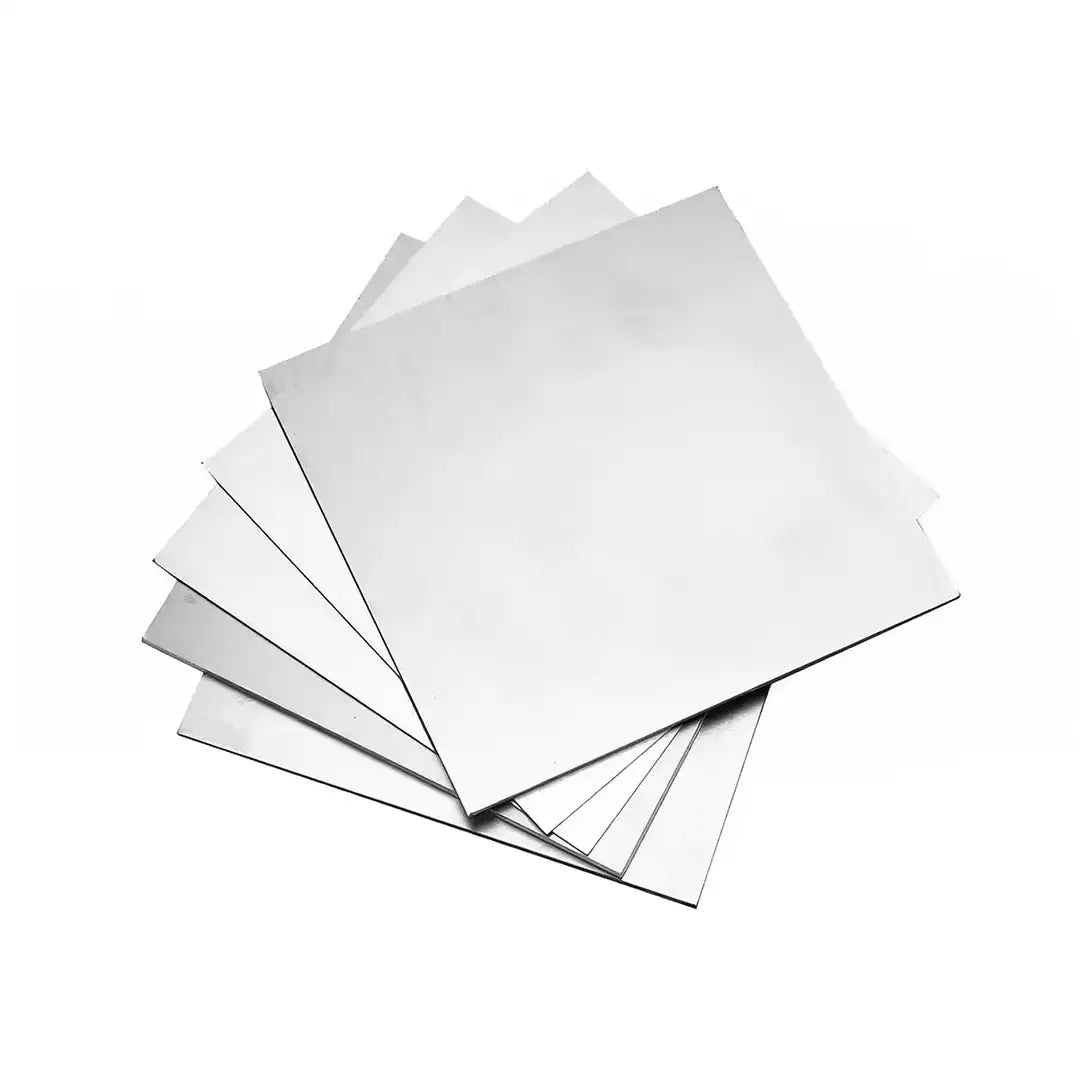

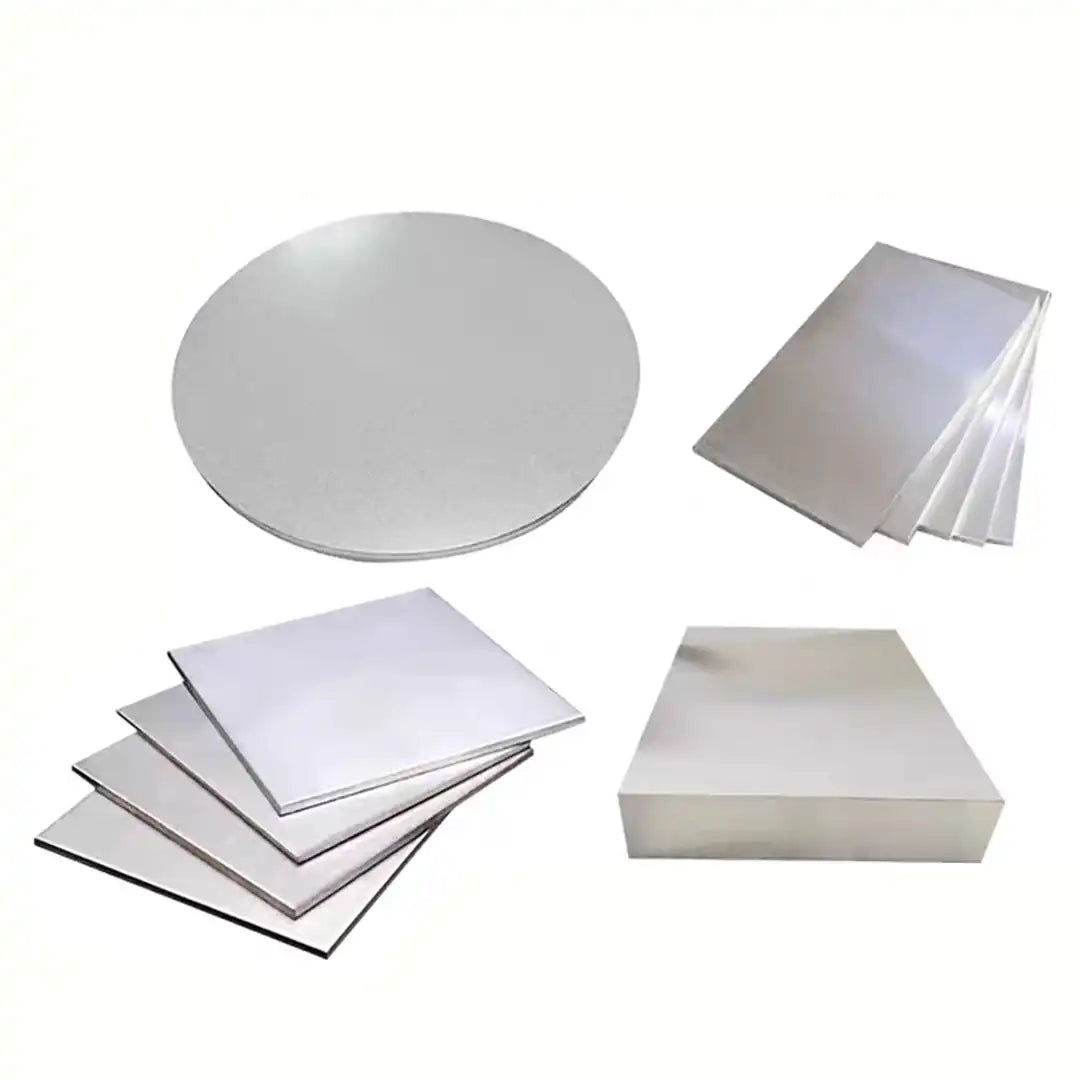

Grade 5 — Ti-6Al-4V Plates & Blocks
Titanium Alloy Plate & Block
Custom CNC Machining & Surface Finishing
Aerospace-grade Grade 5 titanium alloy plates and blocks with full in-house fabrication services — precision CNC machining, professional surface treatment and custom adhesive backing, all tailored to your exact specifications.
0.5mm – 100mm
Plate Thickness
±0.02mm
Machining Tolerance
One-Stop Service
Cutting / CNC / Coating
Material Overview
Grade 5 Titanium Alloy (Ti-6Al-4V)
Grade 5 titanium alloy (Ti-6Al-4V) is the most widely used alpha-beta titanium alloy for industrial and engineering applications. Alloyed with 6% aluminum and 4% vanadium, it delivers an unmatched combination of high specific strength, excellent corrosion resistance and reliable machinability, making it the preferred material for structural components, precision parts and harsh-environment equipment.
RapidKeen supplies forged and precision-rolled Grade 5 titanium plates and blocks in a full range of dimensions. All raw materials undergo stress-relief annealing to ensure uniform grain structure and stable mechanical performance. Combined with our 5-axis CNC machining and value-added finishing services, we deliver ready-to-use titanium parts from raw material to final product in a single supply chain.
One-Stop Fabrication: From raw plate/block cutting, precision CNC machining, surface treatment to custom adhesive backing — we handle every step in-house to ensure quality, lead time and cost efficiency for your project.
Chemical Composition (wt.%)
| Element | Minimum | Maximum |
|---|---|---|
| Titanium (Ti) | Balance | |
| Aluminum (Al) | 5.50% | 6.75% |
| Vanadium (V) | 3.50% | 4.50% |
| Iron (Fe) | — | 0.30% |
| Oxygen (O) | — | 0.20% |
| Carbon (C) | — | 0.08% |
| Nitrogen (N) | — | 0.05% |
| Hydrogen (H) | — | 0.015% |
Key Material Properties
Grade 5 titanium alloy offers an exceptional balance of mechanical strength, lightweight performance and environmental durability, making it ideal for both raw material and finished component applications.
High Specific Strength
Outstanding strength-to-weight ratio for structural components, ideal for weight-critical aerospace and automation systems.
- Tensile Strength: 900 – 1100 MPa
- Yield Strength: 860 MPa (min)
- Density: 4.43 g/cm³
- Excellent fatigue resistance
Superior Corrosion Resistance
Self-healing titanium oxide passivation layer ensures long-term durability in harsh chemical and outdoor environments.
- Resistant to seawater & brine
- Stable in most acid solutions
- Biocompatible & non-toxic
- Oxidation resistant up to 400°C
Excellent Machinability
Stable thermal and mechanical properties support precision CNC machining, complex forming and surface modification.
- Supports 5-axis CNC milling
- Excellent drilling & tapping performance
- Compatible with all surface treatments
- Low thermal deformation
| Physical Property | Value | Condition / Note |
|---|---|---|
| Density | 4.43 g/cm³ (0.160 lb/in³) | Room temperature, fully annealed |
| Modulus of Elasticity | 113.8 GPa (16.5 Msi) | Young's modulus, tension |
| Shear Modulus | 44 GPa (6.4 Msi) | Room temperature |
| Poisson's Ratio | 0.342 | Annealed condition |
| Coefficient of Thermal Expansion | 9.5 × 10⁻⁶ /°C (5.3 × 10⁻⁶ /°F) | 20°C to 200°C range |
| Specific Heat Capacity | 560 J/kg·K | Room temperature |
| Electrical Resistivity | 1.78 × 10⁻⁶ Ω·m | Annealed, 20°C |
| Magnetic Property | Non-magnetic (paramagnetic) | All temperature ranges |
Applications & Use Cases
Our titanium plates, blocks and custom machined parts serve a wide range of industries from aerospace and medical to scientific research and advanced manufacturing.
01
Aerospace & Defense Components
Structural brackets, engine accessories, mounting plates and airframe parts; lightweight armor and defense equipment components requiring high strength-to-weight performance.
02
Medical Device & Implant Parts
Surgical instrument components, orthopedic implant blanks, dental device parts and medical equipment fixtures; fully biocompatible Grade 5 material for medical-grade applications.
03
Laboratory & Scientific Instrumentation
Precision fixture plates, vacuum chamber components, sample holders and testing jigs for research laboratories; non-magnetic properties ideal for analytical equipment.
04
Automation & Robotics Fixtures
End-of-arm tooling, robot gripper components, positioning jigs and assembly fixtures for automated production lines; corrosion resistance for harsh factory environments.
05
Marine & Offshore Equipment
Subsea instrument housings, underwater equipment brackets and corrosion-resistant structural parts for offshore platforms; long-term durability in saltwater environments.
06
Semiconductor & Energy Tooling
Wafer handling components, electrode plates, battery system parts and fuel cell interconnects; high purity and thermal stability for precision manufacturing environments.
Full In-House Fabrication Services
Beyond raw material supply, we provide complete value-added fabrication services to deliver finished, ready-to-install titanium parts per your drawings and requirements.
Precision CNC Machining
5-axis CNC milling, turning, drilling and tapping with ±0.02mm tolerance for complex geometries and tight-tolerance parts.
Surface Treatment
Anodizing, bead blasting, polishing, passivation and PVD coating to meet functional and aesthetic requirements.
Adhesive Backing
Industrial-grade double-sided adhesive lamination, including conductive and insulating options, precision die-cut to shape.
Custom Cutting & Sizing
Waterjet and laser cutting of plates/blocks to custom dimensions, no minimum order for prototype and small batch needs.
Product Specifications
Available Dimensions & Standards
Standard Plate Thickness 0.5 mm – 100 mm
Standard Plate Size 100×100 mm – 2000×1000 mm
Block / Bar Custom Size Machined to drawing requirements
CNC Machining Tolerance ±0.02 mm (standard)
Material Condition Annealed / Stress-relieved
As-Rolled Surface Ra ≤ 3.2 μm
Machined Surface Ra ≤ 0.8 μm (standard)
CNC Machining Capability
5-axis CNC milling, turning, threading, counterboring and tapping. Supports complex 3D geometries, cavity machining and fine feature fabrication from your CAD drawings.
Surface Treatment Options
Type II/III anodizing (multiple colors), glass bead blasting, mechanical polishing, chemical passivation and PVD coating for wear resistance and decorative finish.
Custom Adhesive Backing
High-temperature resistant industrial double-sided tape, conductive adhesive and insulating foam tape options. Precision die-cut matching part contours with peelable liner.
Quality & Traceability
Each batch supplied with material certification and dimensional inspection report. Full traceability from raw material to finished machined components.
Request a Custom Quote for Your Project
Contact RapidKeen for titanium plates, blocks, custom CNC machined parts and value-added finishing services.
