Description

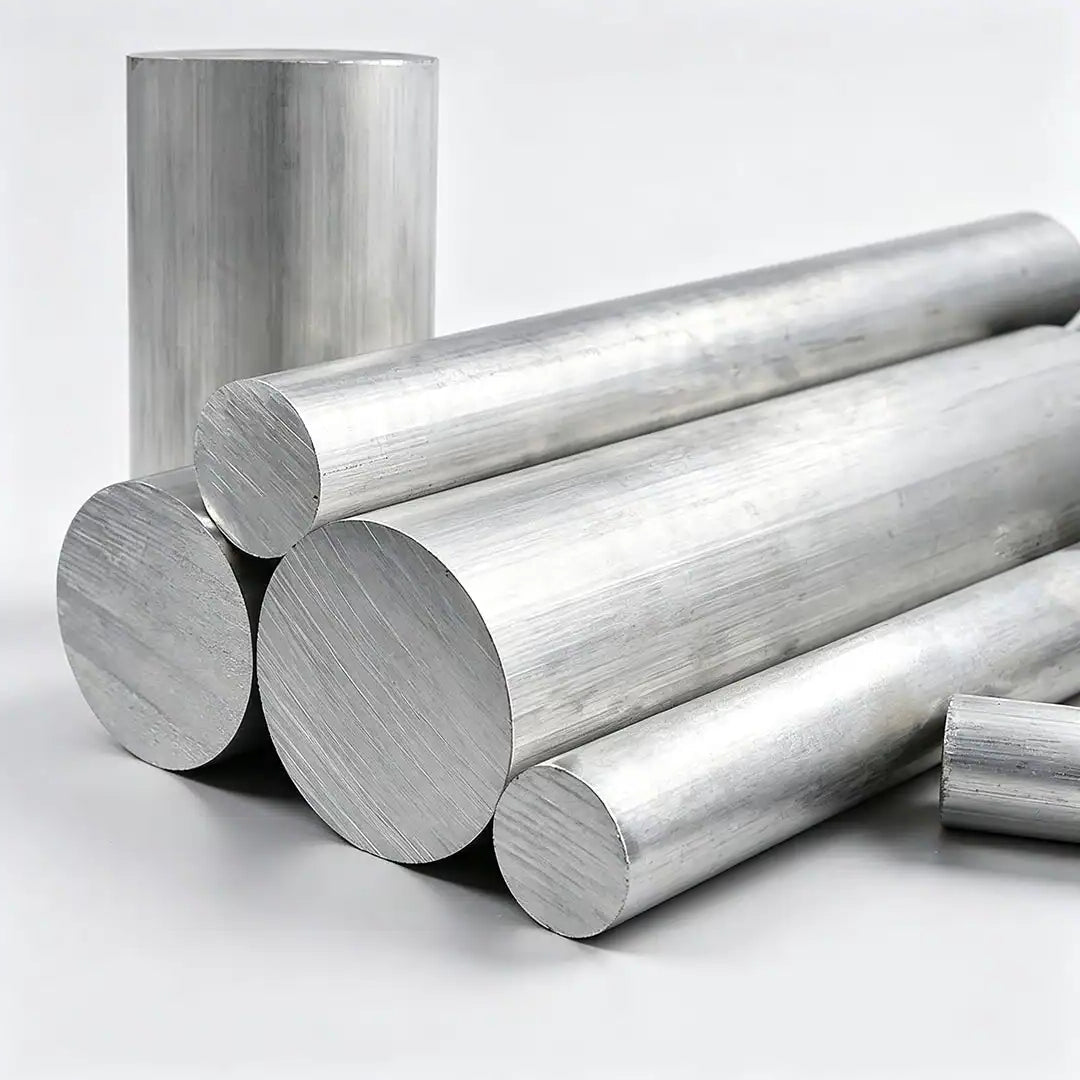

x3 Inch 6061-T6 Aluminum Round Bar, 55–75mm Solid Billet
This collection covers 3 inch 6061 aluminum round bar and the heavy section band from 55mm to 75mm: solid, T6 heat-treated bar that doubles as small billet stock. These diameters are chosen for heavy spindles, large rollers, pump and valve bodies, thick flanges, and mold blocks — parts that start from a substantial chunk of solid aluminum.
Every length is true solid 6061 aluminum rod — never tube, never cast — sawn or cut to length and ready for heavy turning, deep boring, facing, and pocket milling. Choose the diameter that matches your drawing and order stock lengths, sawn blanks, or custom-cut aluminum bar stock from RapidKeen.
Diameters55mm–75mm solid round, incl 2-1/2 and 3 inch-class sizes
Alloy & Temper6061-T6, solution heat treated and artificially aged
FormSolid round bar / small billet, never hollow tube or casting
LengthStock lengths, sawn blanks, or cut to your custom length
Available Diameters in This Collection
- 2-1/2 inch class (55–63mm) 6061-T6 round bar — heavy shafts, thick sleeves, and medium roller bodies
- 64mm–70mm 6061-T6 round bar — large hubs, sheave blanks, and heavy coupling bodies
- 3 inch class (71–75mm) 6061-T6 aluminum round bar — the lead size: heavy spindles, large flanges, and mold-tool blocks
Why Engineers Specify Heavy 6061 Sections
At 55–75mm, the design goal shifts from trimming a shaft down to building a rigid component out of a solid block. A 3 inch 6061 aluminum round bar provides the cross section to bore a large central hole, turn concentric shoulders, drill bolt circles, and mill pockets while the part stays fixtured on its own mass. In the T6 temper it delivers serious stiffness and load capacity at roughly one third the density of steel, which is why builders replace steel spindles, housings, and tooling plates with machined 6061 to cut rotating weight and inertia. Solid bar also beats castings for predictable machining behavior and consistent response to welding and anodizing, while 6061's corrosion resistance handles washdown, outdoor, and marine-adjacent service.
Common Applications
Heavy spindles & axlesLarge rollers & drumsPump & valve bodiesHeavy flangesMold & die blocksGear & sheave blanksCylinder & piston partsBearing housingsPress & fixture toolingThick bushings & sleeves
What This Range Is Used For
- Heavy drive spindles, large axles, and load shafts for industrial equipment
- Conveyor and process rollers, drums, and roller center bodies turned from solid
- Pump bodies, valve bodies, impeller hubs, and rotating-equipment components
- Thick mounting flanges, bolt-circle bases, and heavy adapter plates
- Mold and die blocks, cavity inserts, and press-tool components
- Large gear, pulley, and sheave blanks with deep bores and keyways
- Cylinder component blanks, piston-related parts, and gland bodies
- Bearing housings, thick bushings, sleeves, and heavy fixture tooling
Machining, Welding & Finishing
Heavy 6061-T6 aluminum round bar is made for aggressive stock removal: facing large ends, rough and finish boring, stepped and contoured turning, and deep pocket milling all run with light, continuous chips, so a 3 inch billet reaches finished shape far faster than the same part in steel. The generous cross section supports concentric boring, annular grooves, cross-holes, and dense bolt patterns from a single fixturing. It welds by MIG or TIG with 6061 or 4043 filler, noting the usual local reduction of T6 strength near the weld, and it finishes by bead blasting, brushing, polishing, powder coating, or clear and colored anodizing with even results across the large surface.
Industries That Buy This Range
Heavy CNC machiningMold & tool makingPumps & rotating equipmentHydraulics & fluid powerConveyors & processing linesPackaging machineryMarine & offshore supportMaintenance & repair (MRO)
Ordering, Sawing & Cut Length
Choose any diameter from 55mm to 75mm, or the 2-1/2 and 3 inch-class fractional sizes, then enter the length you need. This 6061 aluminum round bar is supplied as full stock lengths, sawn billet blanks close to finished size, or single cut pieces for emergency repairs. Heavy sections are sawn square and packed to protect the surface; both one-off blanks and production quantities of aluminum bar stock are available.
Quick Questions
Is this bar or billet? Solid extruded 6061-T6 round bar in heavy sections, which is used exactly like small billet stock for parts machined from solid.
3 inch class or move to the extra-large range? Stay at 3 inch class (55–75mm) for standard heavy spindles and housings; move to the 80–100mm extra-large bar, billet & round blank collection for oversized mold blocks and heavy flanges.
Can it be supplied pre-sawn? Yes. Order sawn blanks at your rough length and finish machine in-house, or request cut-to-length pieces.
Solid or hollow? Fully solid round stock throughout — never tube, pipe, or casting.
Shipping & Lead Time
In-stock, standard 3 inch 6061-T6 aluminum round bar and 55–75mm solid billet are prepared and shipped within 1–5 business days.
Custom-cut or processed orders require extra time based on processing complexity; the exact lead time depends on the size and quantity ordered.
After shipment, delivery to US addresses typically takes 7–15 days, and a tracking number is provided as soon as the order leaves our warehouse.
For heavy spindles, rollers, housings, and mold blocks, the 3 inch 6061 aluminum round bar collection across 55–75mm supplies solid T6 billet stock — sawn or cut to your length and ready for serious machining.
