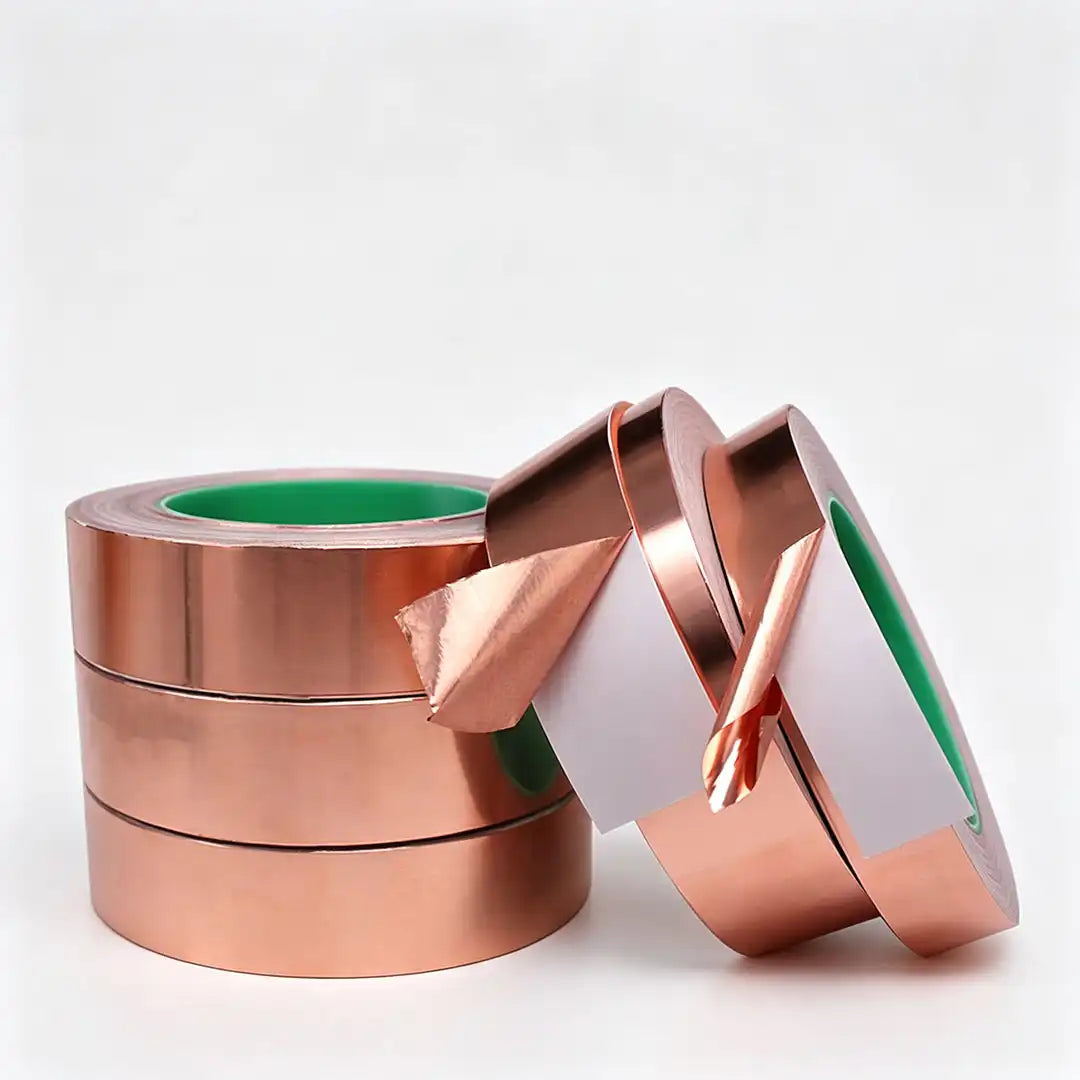

xDouble-Conductive Self-Adhesive Copper Foil Tape
Self-adhesive copper foil tape that conducts on both sides — a pure-copper face plus a Z-axis conductive acrylic adhesive for true point-to-point electrical contact, EMI shielding and reliable grounding.
What Is Double-Conductive Self-Adhesive Copper Foil Tape?
Double-conductive self-adhesive copper foil tape is a flexible adhesive backed copper foil in which both the exposed copper surface and the pressure-sensitive adhesive layer are electrically conductive. Loaded with conductive particles, the acrylic adhesive carries current through the bond line (Z-axis / XYZ-axis), so the tape keeps conducting where it sticks to a metal surface. Peel off the release liner and press the copper foil tape into place to create an instant conductive bond.
How the three layers work
- Conductive copper face — a high-purity copper foil surface that carries current and blocks electromagnetic interference.
- Conductive acrylic adhesive — a Z-axis electrically conductive self-adhesive layer that maintains point-to-point contact straight through the glue line, even on grounded metal.
- Release liner — peels away cleanly so the adhesive backed copper foil applies flat with full, even contact.
Why Choose This Copper Foil Tape
Conductive Through the Adhesive
The Z-axis conductive acrylic adhesive lets current pass through the bond line, delivering true point-to-point electrical contact.

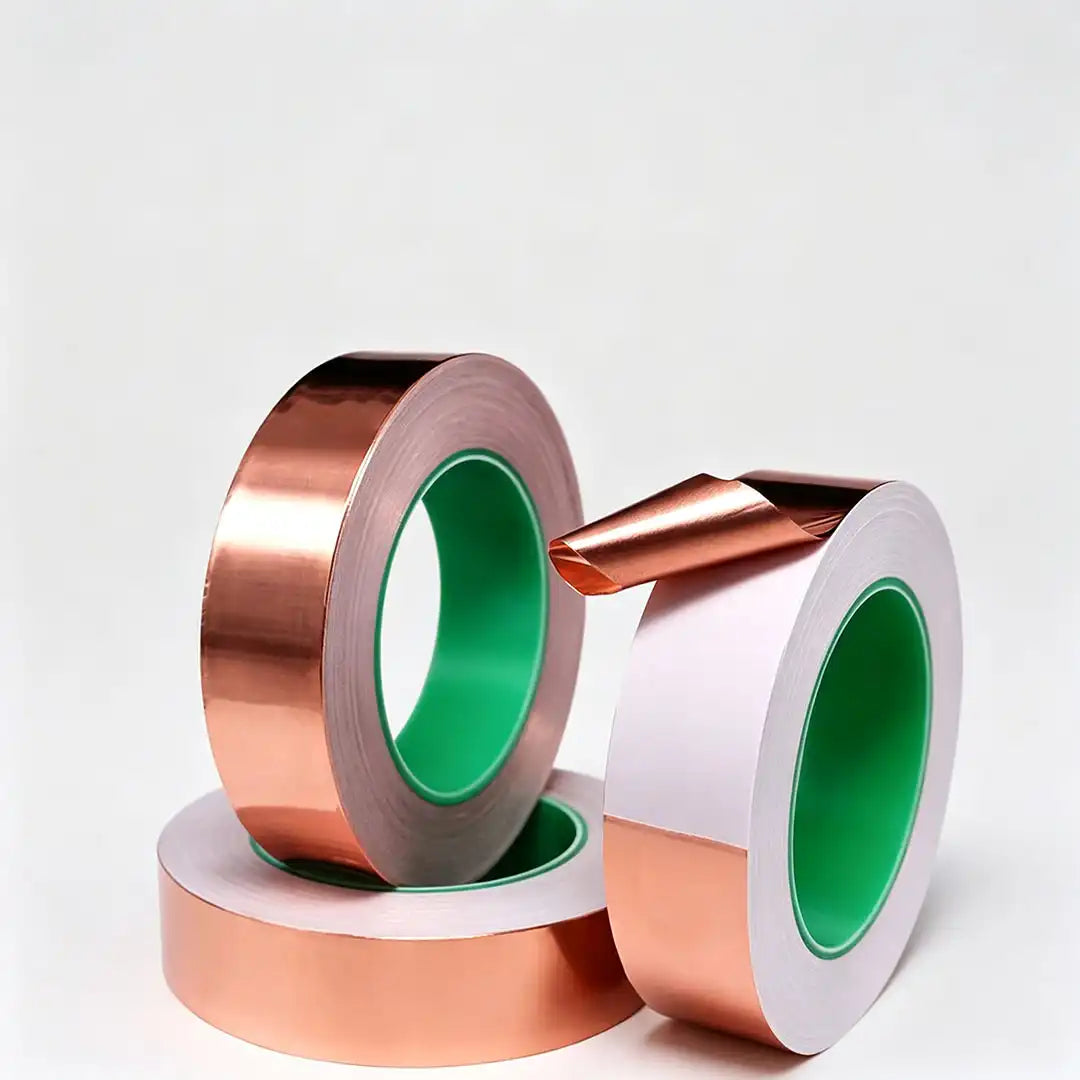

Reliable Grounding Bonds
Bonds copper directly to metal chassis, frames and ground planes with this self-adhesive copper foil tape — no extra connector needed.
Continuous EMI/RFI Shielding
The conductive copper face and conductive adhesive close the shield at overlaps, seams and joints for uninterrupted coverage.
Low Contact Resistance at Seams
Overlapping layers stay electrically continuous through the adhesive, keeping shield impedance low across the whole assembly.
Flexible & Solderable
Soft pure copper foil conforms to curves and corners, and the high-purity conductive copper face still accepts soldering.
Custom Rolls, Sheets & Die-Cut
Supplied as adhesive backed copper foil in rolls, sheets and die-cut grounding pads in your exact width and length.
Common Applications
Double-conductive self-adhesive copper foil tape is chosen wherever electricity must keep flowing through the bonded layer:
- Point-to-point grounding
- Bonding to metal chassis
- EMI gaskets & seams
- Shield overlap continuity
- ESD / static charge draining
- PCB & FPC grounding
- Membrane switches
- Shielded enclosures
- Cable shield termination
Specifications
| Product | Double-conductive self-adhesive copper foil tape |
|---|---|
| Material | Pure copper foil (Cu 99.9%+) |
| Conductivity | Double-conductive — copper face and adhesive layer both electrically conductive (Z-axis / through-bond) |
| Adhesive | Electrically conductive acrylic pressure-sensitive adhesive |
| Foil thickness | Common options 0.018–0.10 mm (0.7–3.9 mil), custom on request |
| Available forms | Rolls, sheets and die-cut pads / shapes |
| Width & length | Custom widths and lengths, from narrow strips to wide sheets |
| Temperature range | Approx. -40°C to 130°C |
| Color / finish | Natural copper, matte foil surface |
| Compliance | RoHS |
Rolls, Sheets or Die-Cut
Use continuous rolls for seam shielding and production lines, flat sheets for panel-level grounding, or die-cut adhesive backed copper foil pads for repeatable peel-and-stick contact points. Every form uses the same double-conductive copper foil and Z-axis conductive adhesive.
Double-Conductive vs Single-Conductive Copper Foil Tape
This double-conductive self-adhesive copper foil tape conducts on the copper face and through the adhesive, which is essential when the tape must make electrical contact with the conductive surface it is stuck to. If your application only needs shielding on the copper face and the bonded side should remain electrically insulated, a single-conductive self-adhesive copper foil tape with non-conductive adhesive is the more economical choice.
Shipping & Delivery
1. Processing (in-stock)Standard, in-stock self-adhesive copper foil tape orders ship within 1–5 business days.
2. Custom productionCustom-cut or fabricated orders require additional production time based on cutting and processing complexity.
3. Transit after dispatchOnce shipped, estimated delivery takes 7–15 days.
Returns & Custom Orders
Custom and cut-to-size self-adhesive copper foil tape is fabricated to your ordered dimensions. Once cutting or processing has begun, custom products cannot be cancelled or returned. Please confirm your width, length and form before ordering.
