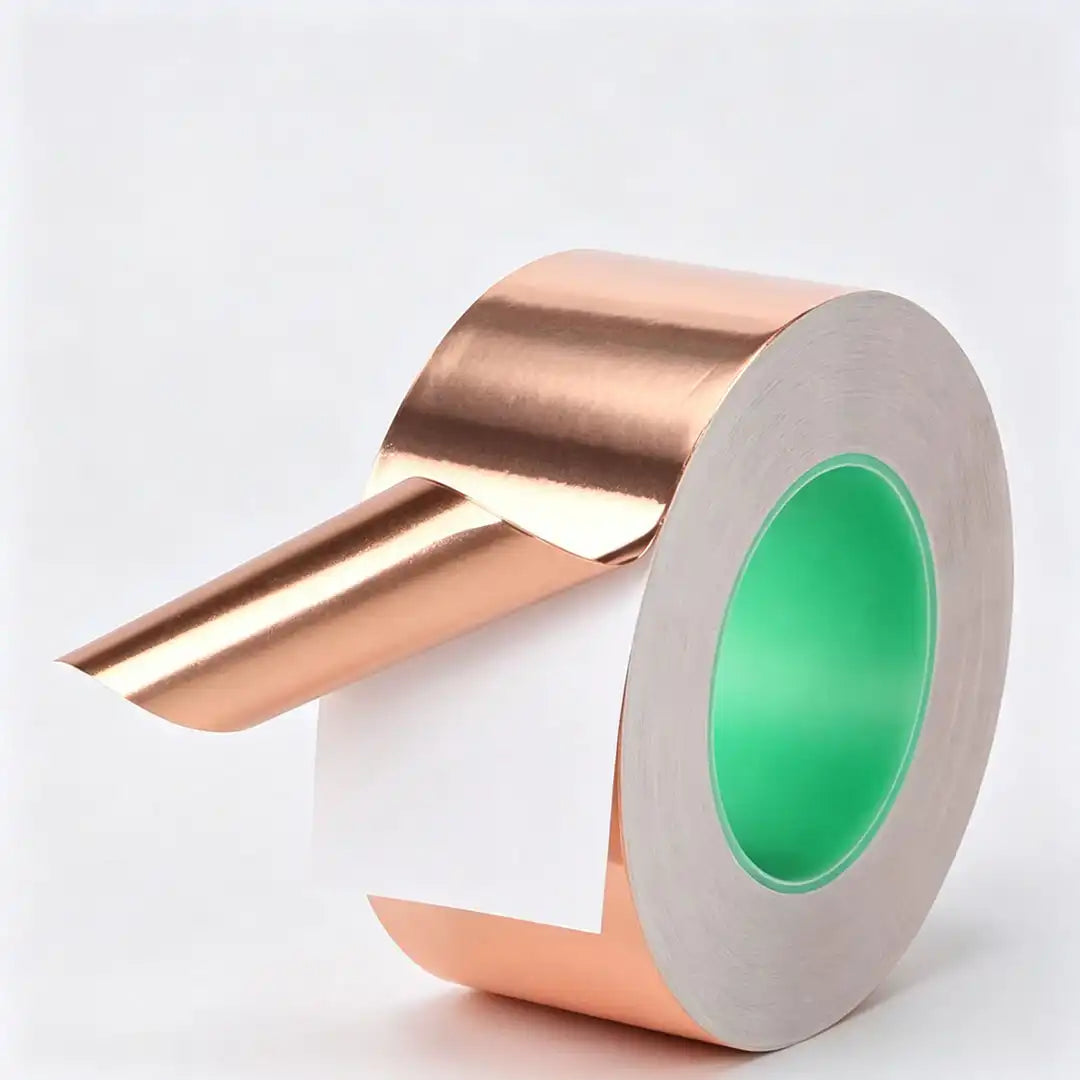

xSingle-Conductive Self-Adhesive Copper Foil Tape
Peel-and-stick self-adhesive copper foil tape with a conductive pure-copper face and a non-conductive acrylic backing — engineered for reliable EMI/RFI shielding, grounding and everyday electronic repair.
What Is Single-Conductive Self-Adhesive Copper Foil Tape?
Single-conductive self-adhesive copper foil tape is a thin, flexible adhesive backed copper foil supplied on a protective release liner. The exposed copper surface is fully conductive, while the pressure-sensitive acrylic adhesive on the back is non-conductive and electrically insulates the bonded side. You simply peel off the liner and press the copper foil tape into place — no tools, heat or soldering are required to install it.
How the three layers work
- Conductive copper face — a high-purity copper foil surface that carries current and blocks electromagnetic interference.
- Non-conductive acrylic adhesive — a strong, age-resistant self-adhesive layer that grips the substrate without creating an electrical path through the glue line, helping to prevent unintended short circuits.
- Release liner — peels away cleanly so the adhesive backed copper foil lays down flat without wrinkles.
Why Choose This Copper Foil Tape
Reliable EMI/RFI Shielding
The continuous copper face of the self-adhesive copper foil tape forms an effective barrier against electromagnetic and radio-frequency interference.
Single-Conductive Design
Conductive on the copper side, insulated on the adhesive side — ideal where the bonded surface must stay electrically isolated.
Strong Self-Adhesive Backing
Pressure-sensitive non-conductive acrylic adhesive bonds firmly to metal, plastic, glass and painted surfaces, then conforms under finger pressure.
Flexible & Conformable
Soft pure copper foil wraps curves, corners, cables and irregular enclosures, and cuts cleanly with scissors or a knife.
Solderable Copper Surface
The high-purity conductive copper face accepts soldering and easy forming for prototyping, repairs and permanent joints.
Custom Rolls, Sheets & Die-Cut Shapes
Available as adhesive backed copper foil in rolls, flat sheets and die-cut pads in the exact width and length your project needs.
Common Applications
Single-conductive self-adhesive copper foil tape is widely used whenever a lightweight, stick-on conductive shield or ground path is needed:
- EMI / RFI shielding
- Grounding & static charge draining
- Transformer & coil wrapping
- Cable & harness shielding
- Electronic repair
- PCB prototyping
- Shielding enclosures & cavities
- Stained glass & crafts
- Paper circuits
Specifications
| Product | Single-conductive self-adhesive copper foil tape |
|---|---|
| Material | Pure copper foil (Cu 99.9%+) |
| Conductivity | Single-conductive — exposed copper face conductive; adhesive side non-conductive |
| Adhesive | Non-conductive acrylic pressure-sensitive adhesive |
| Foil thickness | Common options 0.018–0.10 mm (0.7–3.9 mil), custom on request |
| Available forms | Rolls, sheets and die-cut pads / shapes |
| Width & length | Custom widths and lengths, from narrow strips to wide sheets |
| Temperature range | Approx. -40°C to 130°C |
| Color / finish | Natural copper, matte foil surface |
| Compliance | RoHS |
Rolls, Sheets or Die-Cut
Choose continuous rolls for production lines and cable wrapping, flat sheets for panel shielding, or die-cut adhesive backed copper foil pads and shapes for repeatable, peel-and-stick assembly. Every form uses the same single-conductive copper foil and non-conductive acrylic adhesive.
Single-Conductive vs Double-Conductive Copper Foil Tape
This single-conductive self-adhesive copper foil tape conducts electricity on the exposed copper face, while the non-conductive adhesive insulates the bonded side. It is the cost-effective choice for general shielding and wrapping where current does not need to travel through the glue line. If your design requires point-to-point electrical contact through the adhesive — for example bonding copper directly onto a grounded metal surface — a double-conductive copper foil tape with conductive adhesive is the better match.
Shipping & Delivery
1. Processing (in-stock)Standard, in-stock self-adhesive copper foil tape orders ship within 1–5 business days.
2. Custom productionCustom-cut or fabricated orders require additional production time based on cutting and processing complexity.
3. Transit after dispatchOnce shipped, estimated delivery takes 7–15 days.
Returns & Custom Orders
Custom and cut-to-size self-adhesive copper foil tape is fabricated to your ordered dimensions. Once cutting or processing has begun, custom products cannot be cancelled or returned. Please confirm your width, length and form before ordering.
